A successful Outdoor Fixed LED Display installation requires more than just connecting cabinets. It demands rigorous structural engineering, precise thermal management, and strict electrical compliance. For project managers and integrators, failure at the deployment stage carries heavy consequences. You risk rapid hardware degradation, voided warranties, or severe safety hazards. The outdoor environment relentlessly attacks exposed electronics through wind, rain, and extreme heat.
This guide breaks down the critical implementation realities you must master. We explore structural load calculations, environmental safeguards, and exact assembly protocols. You will learn how to execute a resilient, commercial-grade deployment. By mastering these engineering fundamentals, you eliminate the guesswork. You ensure your display operates flawlessly through every season.
Structural Integrity First: Select mounting methods based on wind load and structural capacity; always build from the bottom row upward to ensure alignment.
Thermal & Weather Defense: Mandate IP65/IP66 ratings, axial flow fans (or HVAC), and <3-ohm grounding to prevent environmental failures.
Calculate Power Loads: Prevent electrical fires by mapping cabinet power consumption against cable capacity before defining internal cascade or external wiring routes.
Dual-Condition Calibration: Software debugging must include both daytime high-brightness (5000–6000+ nits) and nighttime uniformity testing.
A resilient installation begins long before technicians unpack the hardware. You must conduct a thorough site assessment. This prevents disastrous structural failures later. Every physical location presents unique environmental stressors.
Assess direct sunlight exposure first. Screens facing direct midday sun experience massive thermal gain. They require specific brightness capacities to remain visible. Direct sunlight placements demand displays rated at 6,000 nits or higher. Anything less will look washed out. Next, evaluate ambient temperature extremes. Finally, look for coastal salt-spray risks. Salt accelerates corrosion rapidly. Coastal deployments need highly treated metals to survive.
You must match your supporting framework to the site's load-bearing reality. Engineers typically deploy one of three main structural designs. Each design solves specific logistical challenges.

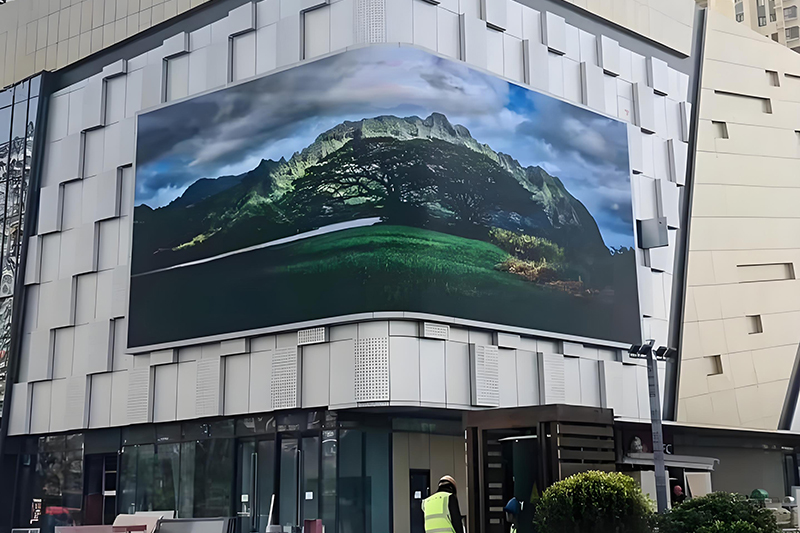

Embedded Installation: This method sets the screen flush against a wall. The surrounding architecture hides the cabinet edges. It strictly requires modules featuring front-maintenance capabilities. Technicians cannot access the rear once installed.
Roof Installation: These structures sit high atop buildings. They are highly susceptible to wind load. Standard engineering practices often require an 8° tilt. This tilt helps mitigate wind resistance and redirects stress downward.
Supported/Pillar Installation: You see single or double pillars frequently on highways. They serve roadside advertising needs perfectly. These setups typically utilize P8-P10 pixel pitches. Pillars demand deep, concrete-reinforced foundations.
Comparison of Structural Mounting Methods
Mounting Method | Primary Challenge | Maintenance Access | Typical Application |
|---|---|---|---|
Embedded | Ventilation constraints | Front-only | Retail exteriors, plazas |
Roof | High wind shear | Rear catwalk | City skylines, stadiums |
Pillar/Supported | Foundation engineering | Rear catwalk | Highways, large intersections |
The skeleton holds everything together. Ensure the framework uses anti-corrosion materials. Rust-proofed steel or anodized aluminum work best. Vendors must coat the metals heavily. This coating withstands localized weathering. Weak frames will bend under the cabinet weight. A bent frame creates visible seams across your digital image.
Outdoor displays battle the elements constantly. You must engineer defenses against heat, water, and electricity spikes. Ignoring these defenses leads to catastrophic diode failure.
Outdoor displays must operate reliably between -10℃ and 40℃. Direct sun pushes internal cabinet temperatures much higher. Heat destroys LED lifespans quickly. You must mandate the inclusion of axial flow fans on the rear. These fans push hot air out efficiently. For deployments in extreme heat, integrate external HVAC systems. Active cooling keeps internal components stable during peak summer months.
Water and dust ruin circuit boards instantly. Verify your cabinets and seams meet IP65 or IP66 standards. An IP65 rating means the unit resists low-pressure water jets. IP66 protects against heavy seas or powerful jets of water. Check the rubber gaskets around every cabinet door. Ensure technicians lock them tightly during assembly.
A proper Outdoor LED installation requires strict electrical grounding. Lightning strikes seek the highest metal point. Ground impedance must measure less than 3 ohms. High impedance prevents power surges from escaping safely. Lightning rods must sit on both the screen framework and the supporting building. Route the grounding cables completely independent of the data lines. This separation stops electrical interference from disrupting your video feed.
Splicing cabinets together requires absolute precision. A single millimeter of error cascades into massive alignment issues by the top row. Treat the physical assembly like building a precision instrument.
Always begin cabinet installation from the bottom row. You must work upward systematically. This utilizes gravity to ensure secure seating. It prevents cumulative alignment gaps. Gaps cause visible, ugly seams in the final image. Build a perfectly level base row first. Check the level multiple times before adding the second tier.
Do not rely on bolts alone to align cabinets. Use precise positioning pins first. They lock the chassis into the correct spatial grid. Then, apply heavy-duty M10 hex screws for horizontal and vertical splicing. Tighten them in a star pattern. This distributes pressure evenly. Ensure zero-gap alignment between all modules. Run your hand across the seams to feel for microscopic ridges.
Define the maintenance model upfront. You cannot change this later without dismantling the entire structure.
Front Maintenance: This approach requires a hex wrench. You rotate the mechanism to unlock the LED board from the front. It works ideally for wall-mounted or embedded screens.
Rear Maintenance: This requires sufficient catwalk space behind the screen. Technicians need room to open rear doors. They access power boxes and receiving cards this way. Build the catwalk at least 60 centimeters wide for safe passage.
Always wait at least 2 minutes after cutting power before performing physical maintenance. Internal capacitors hold lethal charges even after shutdown. Allow them to discharge safely. Wear insulated gloves when touching the power distribution boxes.
Guessing cable limits causes electrical fires. You must calculate data and power constraints using strict mathematical models. Cable management dictates system stability.
Never guess cable capacities. Overloaded cables melt their insulation. Use standard industry formulas to map your setup.
Data Load Calculation: Maximum load per network port equals the network port pixel capacity divided by the cabinet resolution. Exceeding this limit causes flickering video.
Power Load Calculation: Maximum load per power cord equals the cable power rating divided by the cabinet power consumption. Consider peak power, not just average power. Peak power happens when the screen displays pure white at maximum brightness.
Standard Load Calculation Chart
Metric Type | Formula Variable A | Formula Variable B | Resulting Action |
|---|---|---|---|
Data Load Limit | Port Pixel Capacity (e.g., 650K) | Cabinet Resolution (e.g., 128x128) | Determines max cabinets per CAT6 run |
Power Load Limit | Cable Rating (e.g., 3500W) | Peak Cabinet Draw (e.g., 800W) | Determines max cabinets per power line |
Based on the math, route power via an internal cascade. This daisy-chain method links cabinets neatly if within safe limits. If the setup exceeds single-line capacity, you must change tactics. Route independent external power and network cables through designated threading holes. Separate high-voltage power lines from low-voltage data cables. Physical separation prevents electromagnetic interference.
Exposed wires invite disaster. Utilize aviation-grade, weather-resistant fasteners for all external links. Seal all exposed wire entry points with industrial silicone. This prevents water ingress. Water travels along cables into the power supply. A proper silicone seal stops this capillary action. Check these seals annually, as UV exposure degrades silicone over time.
Hardware assembly represents only half the battle. You must calibrate the display software to achieve optimal visual performance. Skipping rigorous testing leads to poor client handovers.
Test the screen refresh rate immediately. You need a minimum 60 Hz for standard smooth playback. High-end camera broadcasts might demand 1920 Hz or 3840 Hz. Verify data transmission distances. If CAT6 cables exceed 100 meters, data packet loss occurs. This packet loss creates blurred images. Switch to fiber optic cables for longer runs.
Do not sign off after a single test. Force-test the display during peak midday sun. This verifies brightness limits and contrast performance under glare. Return to the site at night. Check color uniformity and light-bleed in the dark. A screen looking perfect at noon might look heavily pixelated or excessively bright at midnight. Set up automatic brightness sensors to adjust levels dynamically.
Modules sometimes fail upon first boot. Follow a systematic checklist to isolate the fault.
If a whole screen fails to light, check the main power supply first.
Inspect the sending card's green indicator light. It should blink rapidly.
Check the receiving card's signal light inside the dark cabinet.
For localized black spots, check the voltage on that specific receiving card.
Reseat the ribbon cables connecting the LED module to the hub board.
Even experienced crews make errors. Avoid these common pitfalls to protect your hardware investment. Recognizing these mistakes early saves countless hours of rework.
Many installers pack cabinets tightly against a wall. They leave no rear airflow. This guarantees premature diode failure due to thermal buildup. Heat becomes trapped. Internal temperatures exceed 60℃ quickly. Always leave a minimum air gap behind the display. Install exhaust vents at the top of the structural enclosure to let hot air escape naturally.
Water always finds a way inside. Failing to apply proper silicone sealing at cable entry points ruins power supplies. Neglecting bottom drainage designs inside the framework causes water pooling. The frame must feature small weep holes at its lowest points. These holes allow condensation and trapped rainwater to exit safely.
Selecting the wrong resolution wastes resources. Installing fine-pitch displays (like P4-P6) for distant highway viewing wastes your budget. Drivers cannot see that extra detail from 100 meters away. Conversely, using a P10 pitch for close-proximity pedestrian areas results in heavy pixelation. The image looks like a mosaic. Always match the pixel pitch to the primary viewing distance. The general rule suggests 1 millimeter of pitch equals 1 meter of ideal viewing distance.
A stable outdoor fixed LED display is the result of strict adherence to physical and electrical tolerances. By calculating exact power loads, enforcing rigorous environmental protections like <3-ohm grounding, and following a strict bottom-up assembly process, integrators can eliminate the most common causes of system failure. Evaluate hardware vendors not just on visual specs, but on their provision of clear structural guidelines, IP66-rated enclosures, and comprehensive thermal management options. Always map your cable topology before wiring, and refuse to compromise on structural steel quality. Take the time to execute thorough daytime and nighttime calibrations. Your diligence during the installation phase guarantees a vibrant, resilient display for years to come.
A: Depending on the scale and mounting method (e.g., custom roof structure vs. standard wall mount), mechanical assembly and electrical calibration can take anywhere from a few days to several weeks. Weather conditions and structural foundation pouring significantly impact the overall timeline.
A: Front maintenance allows technicians to remove individual LED modules directly from the front using specialized tools, making it mandatory for embedded screens. Rear maintenance requires physical access behind the display structure, ideal for pillar or roof installations with built-in catwalks.
A: This is typically a data or configuration issue. Verify the DVI connections, check for localized short circuits in the network cables, ensure the refresh rate is correctly set to match the input source, and confirm that the transmission distance hasn't exceeded the hardware's rated limit.
