Sports led display
Features:
Cost effective cabinet material is Aluminum

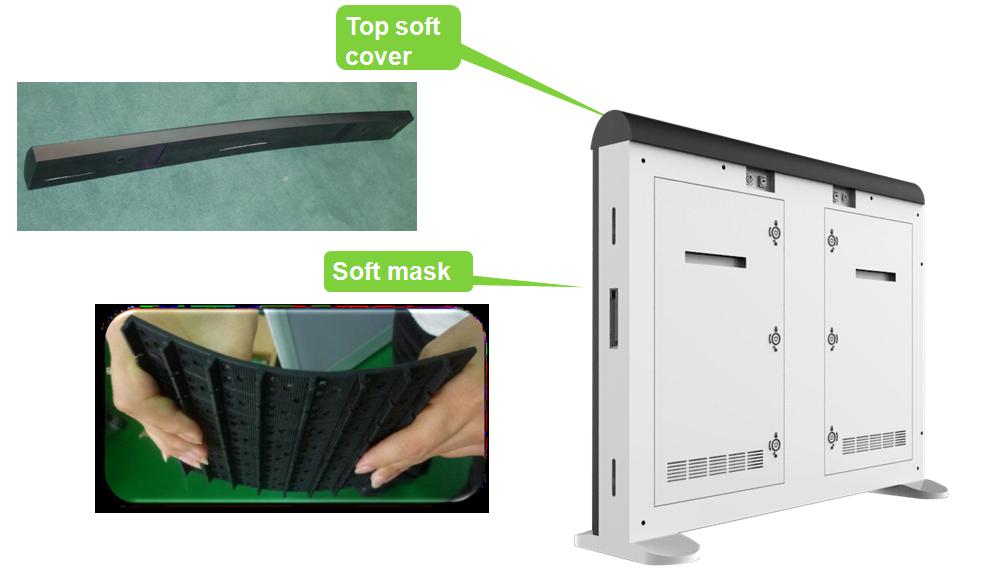

Has soft top cover, soft mask which will protect the athletes.
Support angle adjustment, 65 degree, 75 degree, 90 degree.
Cabinet has option die cast aluminum 960*960mm.
Application:
Used for any kind of sport stadium area, such as football stadium, basketball stadium,

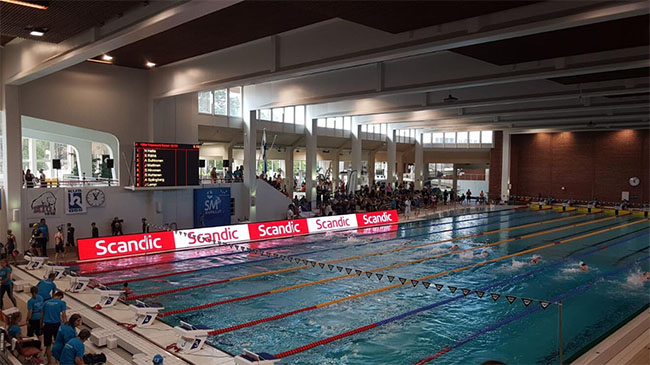

table tennis stadium, hockey area, swimming pool, etc.
Product image:
Product Parameter | |
Model | SPAS10 |
Pixel Pitch(mm) | 10MM |
Pixel Configuration | SMD3535 |
Pixel Density(pixel/sqm) | 10000 |
Brightness(cd/sqm) | 6500 |
Scanning Method | 1/2 |
Module Dimension(mm) | 320*160 |
Module Resolution(pixel) | 32*16 |
Cabinet Dimensions(mm) | 1280*960*120 |
Cabinet Resolution(pixels) | 128*96 |
Max Power Consumption(W/sqm) | 850 |
Average Power Consumption(W/sqm) | 297 |
Cabinet Material | Aluminum |
Cabinet Weight(Kg) | 43 |

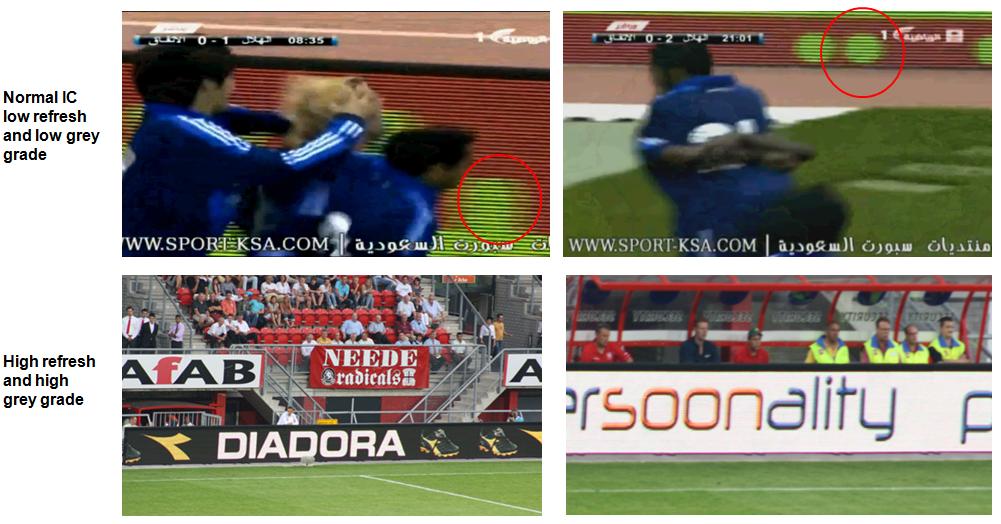

Refresh Rate(Hz) | 3840 |
Viewing Angle | H:140 V:140 |
Protection Garde(fromt/back) | IP65 |
Input Voltage(V) | 110V/240V,50/60Hz |
Grey Level | 16bit |
Working Temperature | -20-60℃ |
Working Humidity | 10%-90% |
Sports led display
Features:
Cost effective cabinet material is Aluminum
Has soft top cover, soft mask which will protect the athletes.
Support angle adjustment, 65 degree, 75 degree, 90 degree.
Cabinet has option die cast aluminum 960*960mm.
Application:
Used for any kind of sport stadium area, such as football stadium, basketball stadium,
table tennis stadium, hockey area, swimming pool, etc.
Product image:
Product Parameter | |
Model | SPAS10 |
Pixel Pitch(mm) | 10MM |
Pixel Configuration | SMD3535 |
Pixel Density(pixel/sqm) | 10000 |
Brightness(cd/sqm) | 6500 |
Scanning Method | 1/2 |
Module Dimension(mm) | 320*160 |
Module Resolution(pixel) | 32*16 |
Cabinet Dimensions(mm) | 1280*960*120 |
Cabinet Resolution(pixels) | 128*96 |
Max Power Consumption(W/sqm) | 850 |
Average Power Consumption(W/sqm) | 297 |
Cabinet Material | Aluminum |
Cabinet Weight(Kg) | 43 |
Refresh Rate(Hz) | 3840 |
Viewing Angle | H:140 V:140 |
Protection Garde(fromt/back) | IP65 |
Input Voltage(V) | 110V/240V,50/60Hz |
Grey Level | 16bit |
Working Temperature | -20-60℃ |
Working Humidity | 10%-90% |
